YAKINDU Statechart Tools Copy link to clipboard
The YAKINDU Statechart Tools adapter identifies states and transitions of statecharts created with YAKINDU Statechart Tools as traceable artifacts.
Why should you use itemis ANALYZE to trace statecharts? The blog post "How to ensure traceability for Statechart Tools" explains it.
Elements traced by itemis ANALYZE are decorated with a itemis logo in YAKINDU Statechart Tools, as shown in figure "Linked elements are marked in YAKINDU Statechart Tools".
Linked elements are marked in YAKINDU Statechart Tools
Once the decoration icon is hovered upon a small tooltip appears showing the number of elements linked to this element. Additionally, a context menu listing the linked artifacts opens once the decoration is clicked, see figure "Listing linked artifacts in YAKINDU Statechart Tools". Clicking one of the linked elements in the context menu shows a tooltip summarizing this element and a double click opens this element.

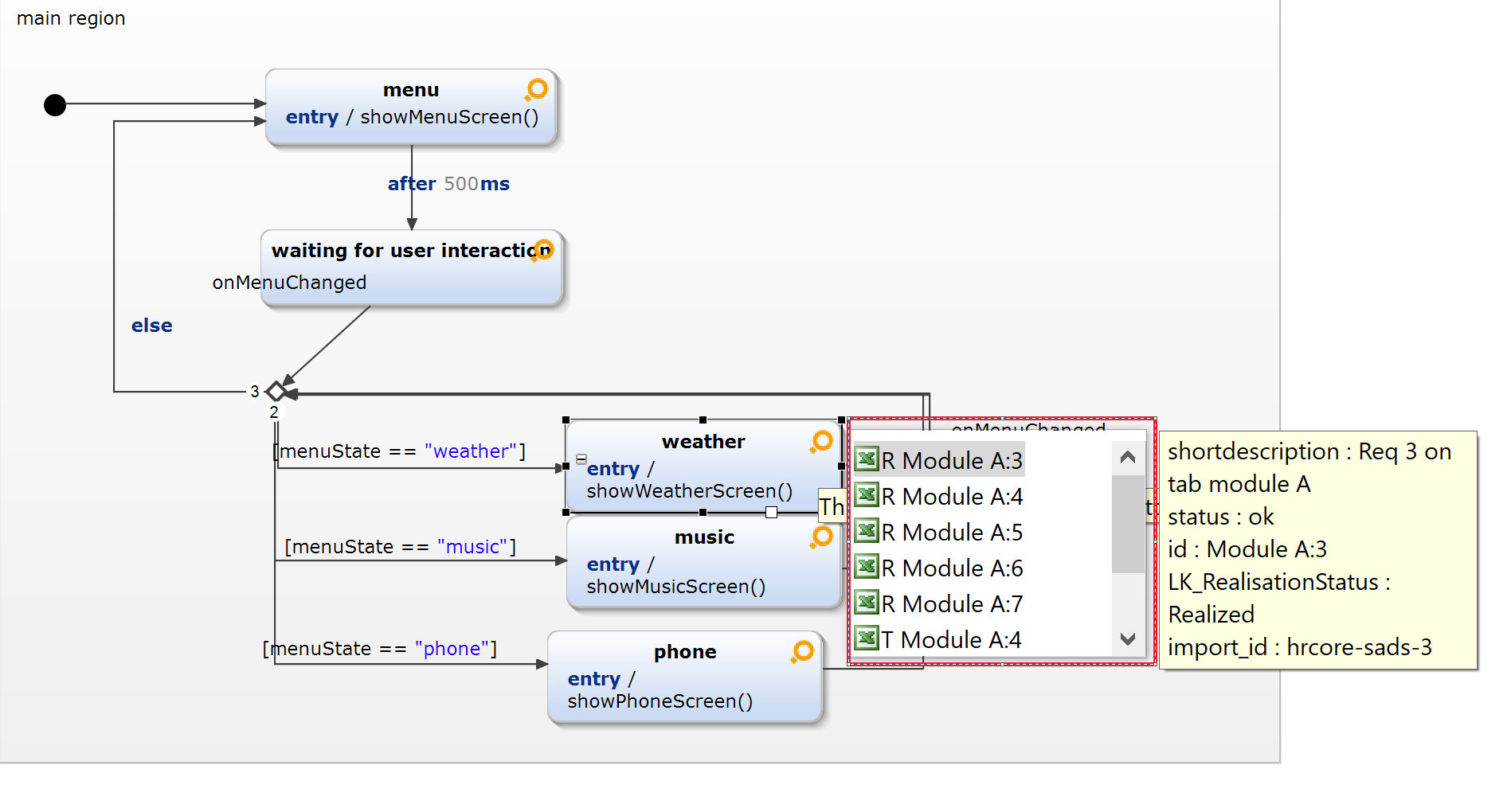

Listing linked artifacts in YAKINDU Statechart Tools
